Description
Precise Load Cell for Compact Applications: Zemic L6D-C3-3kg-0.4B
The Zemic L6D-C3-3kg-0.4B is a single-point load cell made from anodized aluminum, designed for accurate weight measurements up to 3 kg. With OIML C3 approval and IP65 protection, it is ideal for use in retail and bench scales as well as automated systems such as vending machines and smart shelving units.
Your Benefits at a Glance:
-
High Measurement Accuracy: Certified to OIML C3 for precise weight detection.
-
Robust Design: Anodized aluminum housing with IP65 protection against dust and water splashes.
-
Compact Dimensions: Suitable for platform sizes up to 250 × 350 mm.
-
Reliable Performance: Low sensitivity to off-center loads ensures consistent results.
-
Easy Integration: Standard 4-wire connection for straightforward installation.

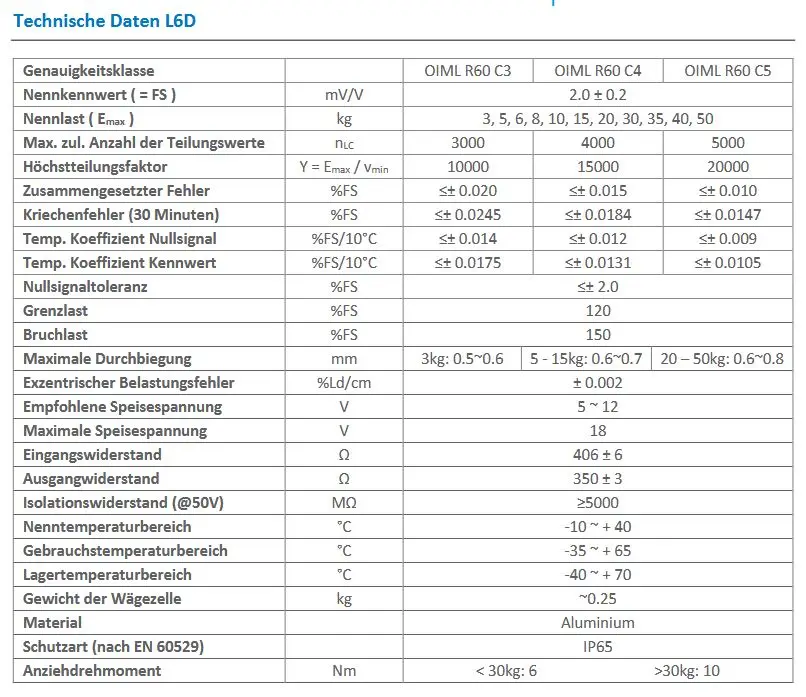

Technical Specifications:
| Feature | Value |
|---|---|
| Rated Capacity | 3 kg |
| Accuracy Class | OIML R60 C3 |
| Sensitivity | 2.0 ± 0.2 mV/V |
| Input Resistance | 406 ± 6 Ω |
| Output Resistance | 350 ± 3 Ω |
| Zero Balance | ≤ ± 2 % of FS |
| Recommended Excitation Voltage | 5–12 V DC |
| Maximum Excitation Voltage | 18 V DC |
| Operating Temperature Range | –35 °C to +65 °C |
| Compensated Temperature Range | –10 °C to +40 °C |
| Protection Class | IP65 |
| Material | Anodized aluminum |
| Max. Recommended Platform Size | 250 × 350 mm |
| Cable Length | 0.4 m (PVC-sheathed, shielded cable) |
Applications:
-
Retail and bench scales
-
Vending machines and self-service systems
-
Smart shelves and inventory management
-
Packaging and filling machines
Note:
Please note that the IP65 rating provides protection against dust and water jets but not against permanent submersion.
Data Sheet and Manual
