Single Point Load Cell Flintec PC1-7.5 kg-GP
Nominal capacity 7.5 kg – GP – Stainless steel – IP65 – Platform up to 350 × 350 mm
Robust solution for industrial platform scales: the PC1 combines central single-cell mounting, a large platform range and a 3 m connection cable.
-
Delivery time:
- Purchase on invoice
- Authorized dealer and service partner
Found this product cheaper elsewhere?
Send us a comparison offer from an authorised dealer — we'll review it and match the price. Guaranteed.
- 1 Submit your offer. By email to [email protected] — incl. model, item no. and price.
- 2 Review by our team. We compare model, scope of delivery and conditions (identical new goods, authorised dealer).
- 3 Response within 24 h. Binding price match — including consultation, 4-year warranty and service.
Valid for commercial orders. Excluded: B-stock, promotional and discontinued items.
Configure Your Scale
Not sure whether weighing range, verification or configuration are right for you? Our shop team is happy to help.
Description
PC1-7.5 kg-GP – Single-point load cell
The Flintec PC1 is a stainless steel single-point load cell with a nominal capacity of 7.5 kg in GP version. This variant is rated to IP65 and specified for platforms up to 350 × 350 mm.
Application and integration

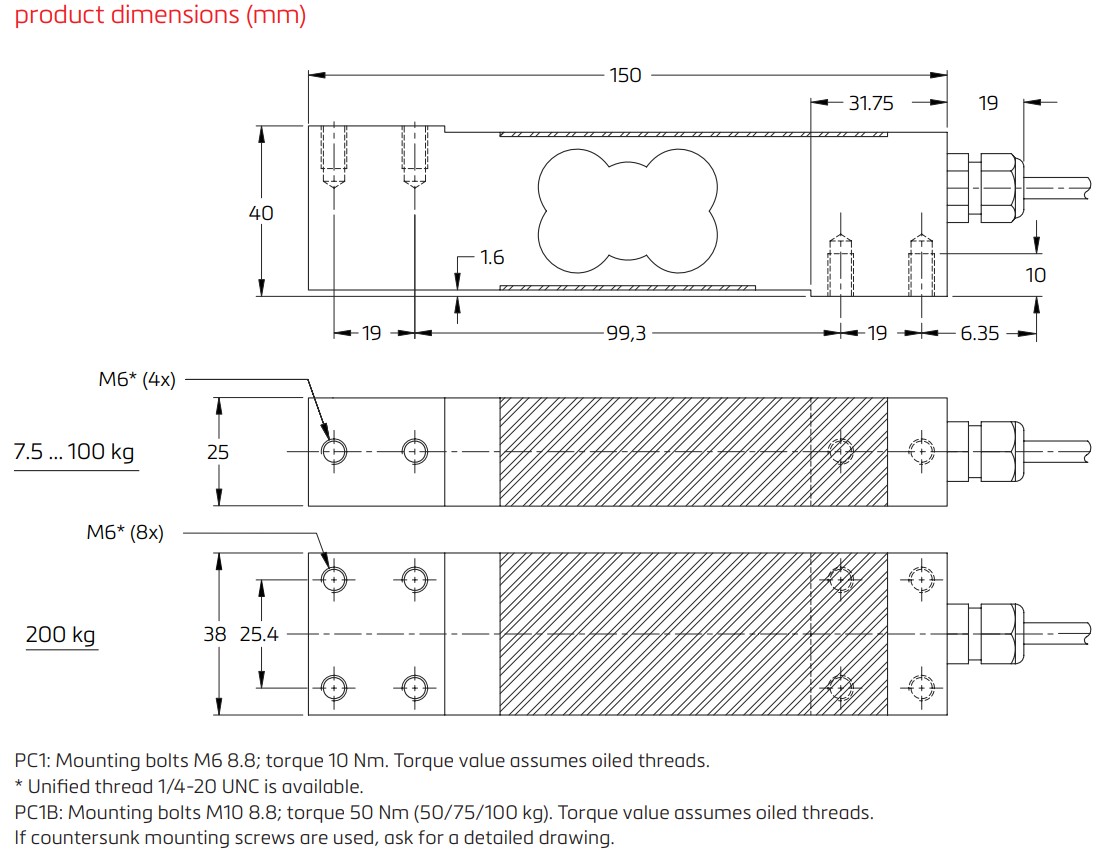

The single-point design enables weight measurement with one centrally positioned load cell. The maximum platform size of 350 × 350 mm must be considered when designing the mechanical installation.
Technical features
- Nominal capacity: 7.5 kg
- Accuracy version: GP
- Load cell material: stainless steel
- Load cell protection rating: IP65
- Maximum platform size: 350 × 350 mm
- Standard cable length: 3 m
- Connection: 4-wire
- Permissible ambient temperature range: -20 to 65 °C
Accuracy version explained
GP means “General Purpose” and denotes the standard version for general weighing applications. No OIML class number with a defined number of load cell verification intervals is stated for GP; the accuracy actually achieved depends on the mechanics, electronics and design of the complete weighing system.
Installation and connection
The load cell is fitted with a 3 m, 4-wire cable. Installation, load introduction and wiring must follow the manufacturer specifications for the PC1 series.
Technical Specifications
| Ambient temperature (Max) in °C: | 65 |
|---|---|
| Ambient temperature (min) in °C: | -20 |
| Cable length of load cell in meters: | 3 |
| Capacity: | 7.5 kg |
| Dispatch: | Parcel dispatch |
| High-Precision Load Cell: | GP |
| IP protection - load cell: | IP65 |
| Load Cell Material: | Stainless steel |
