Pallet Scale OHAUS I-DFP33
Weighing range 1500 kg – Readability 500 g – Weighing area 840 x 1260 mm – Steel, painted
Discover the precise weighing platform with up to 1500 kg maximum capacity, multiple display options and flexible operating modes. Robust steel construction and versatile interfaces make it ideal for a range of applications.
-
Delivery time: 3-4 Tage
- Purchase on invoice
- Authorized dealer and service partner
- Original accessories available
Found this product cheaper elsewhere?
Send us a comparison offer from an authorised dealer — we'll review it and match the price. Guaranteed.
- 1 Submit your offer. By email to [email protected] — incl. model, item no. and price.
- 2 Review by our team. We compare model, scope of delivery and conditions (identical new goods, authorised dealer).
- 3 Response within 24 h. Binding price match — including consultation, 4-year warranty and service.
Valid for commercial orders. Excluded: B-stock, promotional and discontinued items.
Configure Your Scale
Not sure whether weighing range, verification or configuration are right for you? Our shop team is happy to help.
Description
Artikelnummer: i-DFP33P1500B1-M
Calibrated ex works,
Maximum load: 1500 kg,
Readability: 500 g,
Weighing surface (WxL): 1260 x 840 x 90 mm
Design: Painted steel
Weighing terminal: i-DT33P ABS display
Battery life: 30 hours with rechargeable battery; 100 hours with disposable batteries
Application: weighing
Weighing, checkweighing, counting, totalizing
Display
7-segment LCD with multi-color backlighting
Operation
Built-in mains adapter with mains cable (included) or rechargeable battery (supplied with the XW model, available as an accessory for the P model)
Interfaces
Standard RS232 and optional USB device or Ethernet
Construction
ABS plastic indicator, painted carbon steel U-frame, IP65 stainless steel junction box, 4 H8C-IP67-OIML-R60 alloy steel load cells, handle and front wheels, footplate kit (accessory sold separately)
Features
Four adjustable feet mounted on the load cell in self-swiveling ball-in-shell design and painted stainless steel floor stands (available as accessories)
Technical Specifications
| Adjustment: | Adjustment with external weight |
|---|---|
| Battery operating time in h: | 100 |
| Calibration class: | III |
| Calibration value [e] in g: | 500 |
| Design of the scale: | Single range scale |
| Digit increment [d] in g: | 500 |
| Dispatch: | forwarding agency |
| Display type: | LCD with backlight |
| Evaluation unit Cable length in m: | 5 |
| Evaluation unit material: | ABS plastic |
| Features: | PC connectable, Printer can be connected, 230V |
| Functions: | Tare function, Counting function, Printer connectable, PC connectable, Checking, Totalling |
| Interfaces optional: | Ethernet, USB |
| Interfaces series: | RS-232 |
| Interfaces series: | Ethernet, LAN, USB PORT, RS-232 |
| Material structure: | Steel, painted |
| Power supply: | Batteries, Rechargeable battery |
| Verification/Calibration: | Calibrated at the factory |
| Warranty in years: | 1 |
| Weighing plate depth in mm: | 1260 |
| Weighing plate material: | Steel, painted |
| Weighing plate width in mm: | 860 |
| Weighing range [Max] in kg: | 1500 |
| Weighing units: | kg, g |
Data Sheet and Manual
Kunden kauften auch
BSA231-1500
The BSA231-1500M mobile pallet scale combines compact mobility, robust construction and innovative technology for precise measurements in dynamic environments. It is ideal for a wide range of applications and is ready for immediate use.
UFC 1.5T-4M
Pallet scale for up to 1500 kg with 0.5 kg readability, same range of functions as the 600K version, IP67 protection, counting function, tolerance weighing, and optional calibration & interfaces
UXC 1.5T-4M
The KERN UXC 1.5T-4M pallet scale supports weighing in work areas with demanding hygiene requirements. Its stainless steel load receptor and indicator provide IP67 and IP68 protection respectively. Castors and a handle facilitate relocation; the wall bracket allows the indicator to be mounted separately.

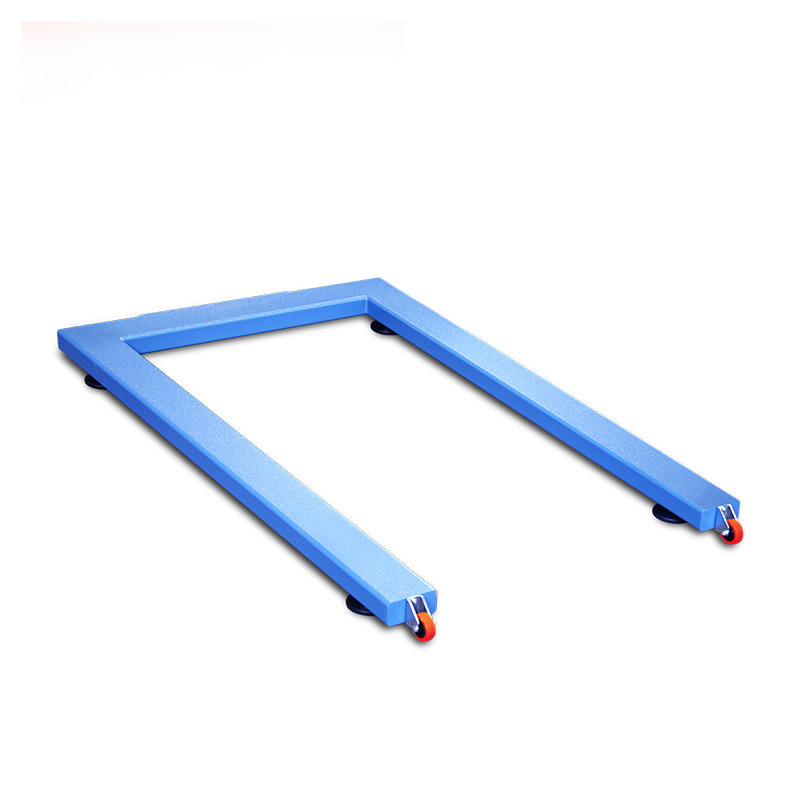

PW15-1
