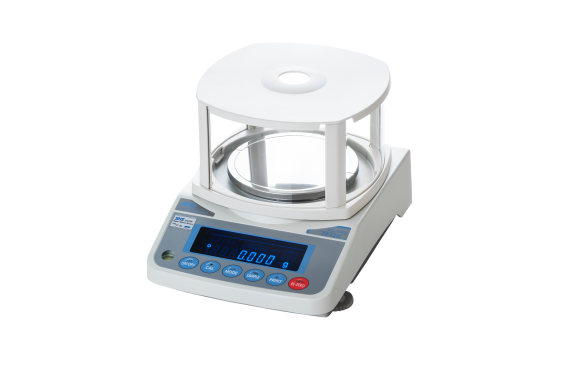

Precision balance – A&D FZ–120i–EC – Maximum load 122 g – Readability 0.001 g – Weighing surface diameter 110 mm – Windscreen – Ionizer available – Stainless steel – Weighing plate – Adjustment with internal test weight – Warranty 4 years
Discover the A&D FZ-120i-EC: high-precision laboratory balance with stable full-metal construction, automatic calibration and fast SHS sensor. Ideal for research, pharmaceuticals and quality assurance.
-
Available, delivery time: 1-3 Wochen
- Original accessories available
Configure Your Scale
Description
A&D FZ-120i-EC – Precision Balance for Laboratory Use
The A&D FZ-120i-EC is a compact and highly accurate laboratory balance with a max capacity of 122 g and a readability of 0.001 g. Ideal for laboratories, R&D, quality control, and pharmaceutical applications.
This model is legal for trade (Class II) and features internal automatic calibration.
Its bright VFD display, intuitive keypad, and multiple functions such as counting and percent weighing ensure easy handling. Power supply via mains or optional battery pack.
Technical Specifications
| Specification | Value |
|---|---|
| Max Capacity | 122 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Linearity | ±0.002 g |
| Pan Size | Ø 130 mm |
| Display | VFD (Vacuum Fluorescent Display) |
| Keypad | Membrane, intuitive |
| Interfaces | RS-232 (standard), USB or LAN optional |
| Operating Temperature | +5 °C to +40 °C |
| Functions | Counting, percent weighing, underhook weighing, statistics, animal weighing |
Accessories & Extensions
| Accessory | Description |
|---|---|
| Factory verification A&D up to 50 kg | Calibration service with test certificate |
| A&D Ethernet Interface | For LAN integration and data networking |
| A&D Battery Pack FXi-OP-09 | Rechargeable battery for cordless operation |
| A&D High-Speed USB Interface | For fast connection to PC systems |
Typical Applications
- Pharmaceutical industry
- Research and development
- Laboratory analysis
- Quality control
- Jewelry and precious metal processing
Visit ESSMANN Waagen – we will be happy to support you in integrating this scale into your operational workflows.
Technical Specifications
| Adjustment: | Internal adjustment |
|---|---|
| Ambient humidity (max) in %: | 85 |
| Ambient temperature (Max) in °C: | 40 |
| Ambient temperature (min) in °C: | 5 |
| Calibration class: | II I |
| Calibration value [e] in g: | 0,01 |
| Design of the scale: | Single range scale |
| Digit increment [d] in g: | 0,001 |
| Digit increment [d] in kg: | 0,000001 |
| Dispatch: | Parcel dispatch |
| Display type: | LCD |
| Functions: | Percentage determination, Checking, Taring, Piece counting, Switching between weighing units, Weighing with tolerance range, Underfloor weighing, Statistics |
| Housing depth in mm: | 193 |
| Housing height in mm: | 85,5 |
| Housing material: | Metal, painted |
| Housing width in mm: | 262,5 |
| Interfaces optional: | Ethernet, USB |
| Interfaces series: | RS-232 |
| Interfaces series: | Ethernet, USB PORT, RS-232 |
| Linearity in ± g: | 0,002 |
| Power supply: | Rechargeable battery, plug-in power supply |
| Recommended calibration weight: | 100 g |
| Repeatability (standard deviation) in g: | 0,001 |
| Scope of delivery: | Kleiner Windschutz (FXi-10) |
| Smallest part weight (normal) in g/piece: | 0,001 |
| Stabilization time in s: | 1 |
| Version Version: | Draft shield, GLP compliant, Ioniser, PC connectable, Printer connectable, Rechargeable battery/battery operation, Stainless steel platform |
| Warranty in years: | 4 |
| Warranty services: | Calibratable |
| Weighing plate material: | Stainless steel |
| Weighing platform diameter in mm: | 110 |
| Weighing range [Max] in g: | 122 |
| Weighing units: | pcs, User programmable unit, lb-oz, SG, g, ozt, mom, lb, ct, oz, % |
